Zbrush Mechanical Part 11, Wireframes

box

Wireframe cages are handy.    They’re pretty easy to make.   In fact, you can make a wireframe of any mesh’s level 1 polygons quite easily.    You start with your basic mesh, and apply UVTile UVs from the UV pallet.

Subdivide the model 3 or 4 times so you have some nice detailed geometry to work with and store a Morph Target use “StoreMT” on the Morph Target pallet–we’ll need this later.



al28

Next, we want to mask the wire look.  This is easy–alpha 28.  It just looks like a square smaller than the the full alpha space.





Use “Mask by Alpha” on the Masking subpallet and invert.   I filled out the mask top and bottom squares from my alpha because I’m going to want a place to drop in a logo later.  invertmt

A quick application of inflate and we have the shape protruding up from the basic object.  inflate

If only Zbrush had a way to just save this frame and chuck the rest.  It does!   Remember that morph target we saved?   Well, there is another handy button on the Morph Target panel marked “Create Diff”.   Press it once and it will create a new tool in the tool pallet which is the difference between the existing mesh and its stored morph target.   Since we only raised up the wire shape, that’s the only difference and that’s what we’ll have left, leaving us with nice wireframe shape.cage

Zbrush Mechanical Part 10, Parts from Parts

finalThis isn’t really a Zbrush tip, per se, but I’m often surprised by frustrated modelers when they hit a wall saying, “This is way too complex!”   What they sometimes have failed to notice, in the pursuit of efficient modeling is that complex machines are often built out of assemblies which are made of subassemblies which are made up of even smaller sub-assemblies and ultimately out of individual (often cast) parts.   Observation of existing machines (and even disassembling a few) can improve your mechanical modeling.   To approach this piece of a leg, I didn’t start with the whole piece.  Instead, I recognized the sides were (at least in my concept sketch) just a mirrored pair of simple subassemblies.   A couple of cylinders and box (suitable beveled by masking and inflating.

Thanks to subtools, I only had to make one cylinder and one box which makes the basic strutsubassemSince I don’t plan to take this apart, I went ahead and merged these into a single tool–if I thought I would need to edit the diameters of the cylinders or something, I might have left these in pieces to adjust them.   (I do bend them, but fortunately I don’t need them in pieces for that.   To build up more of my machine part, I then take two of the assemblies plus a hollow cylinder to build up my next subassembly.assembly

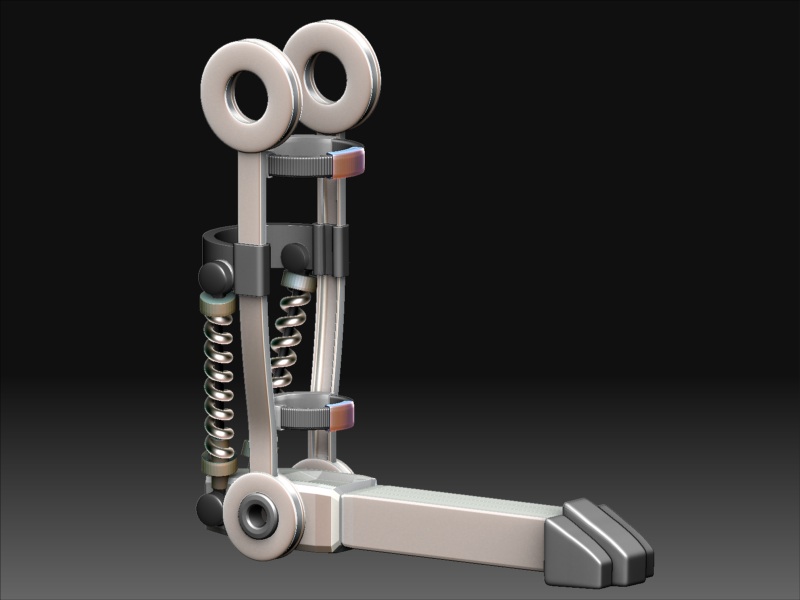

I haven’t built out some super machine with this yet (it will probably be the shin of some mechanical dinosaur when I’m done with it) but you get the idea–work with bite-sized parts and pretty quickly you can get some complex machinery (even without sophisticated texturing.)   This whole mechanical part was really created with just 3 simple forms, suitably scaled, deformed, and positioned.

Add a few more assemblies:progres090101

ZBrush Mechanical Part 9, Instant Greeble

This trick really isn’t mine as much as a simplification of Lemonnado’s excellent tutorial on making Greebles with masks (Zeebles).   (You can view the full tutorial here.)   The point I want to show you here is that UV’s can play a very helpful role in making repeating detail.  Here we take a simple form, made up of a few polygons, and decorate it with a repeating geometry with very little work.

octonut

Step 1) Go to the UV menu (or the Texture Menu in earlier versions of ZB3) and select the UVTile button.   This will stack/overlap each polygon on top of the UV space.  Normally, overlapping UV’s is a BadThing™, but in this case, this is exactly what we want.

Step 2) Subdivide the object to get lots of detail–about 1M polygons (8 levels)

Step 3) Go to the texture menu and select a texture that would look nice.   A seamless texture will also look cool.  I picked built-in Texture 13, which looks tailored made for Greebles.   In one step, the whole object is covered with texture, 1 copy for each polygon at level 1texturesnut

Step 4) Covert the texture to a mask by going to the Masking pallet and select “Mask by Intensity”.   For clarity, you can turn the texture off if you want.maskednut

Step 5) Inflate once or twice to bring out the geometry.inflatnut

A little texturing and it has a nice tech technical surface.   Try this with other alphas or make your own after looking at Lemonnado’s Tutorial.

zeeblequick

Zbrush Mechanical Part 8, Sweeping Up

Zbrush has a handy tool that isn’t always well understood, the Sweep3D primitive, which is akin to the lathe tool you might find in other 3D apps.   What is handy, is that you can pick the number of sides you want, as well as quickly set up for a simple or complex profile.   Here is a simple 8-sided sweep.sweepWith pretty straight forward parameters in it’s initialize menu:initparamsThere are two profiles to set for a Sweep3D object.   The first and most important to the shape is the S Profile, which controls the outer shape of the object.  To add control points, just tap on the graph.   To remove control points, just drag the point off the graph.

halo

The trouble for some users is that the line interpreted between the points is a spline and often doesn’t give a more angular shape.   It isn’t obvious, but when you select a point on a graph, a circle appears around the point like a halo.  That circle isn’t just to highlight the point–it also controls how smooth the line is that passes through the point!  Draw the circle close to the point by dragging its rim, the point gets sharper–further away, the line through the point gets softer.  Neat!

The second profile, T Profile,  controls the thickness of the object that is swept.  By default it give a nice even thickness top and bottom, so I leave this alone.

simple-alphaAfter converting my simple octagonal object to a poly mesh, and subdivided it 8 times with SMT (smooth) off, I can then start decorating it to make it a little more mechanical looking.   Picking a simple alpha from my collection (this one from Codeman Studios) I can just drag a marquee of the alpha by starting my click off the object and dragging across.   Do it twice, and I have a nice set up to inflate some ridges from the surface.masked

A couple of inflates (deformation menu) and  then Iuse radial symmetry of 8 and couple of different alphas to decorate the object further getting something like this.decoratedAdd texture and I have another mechanical part for a machine.finished

Zbrush Mechanical Part 7, Nurnies

mechboxFor years, model makers, whether working in the real or 3D world have known one secret to making things look realistic is often to add small details that represent the mechanical surface of the machine in question.   To speed things up, especially in the days when we worked in styrene instead of bits, small pre-made casts of mechanical “bits”, referred to as nurnies or greebles were glued to objects to make that object look “real.”   It’s a convincing illusion, even with the simplest model.   In this example, I’ve taken the simplest model I could think of, a straight edged cube.    For a real project, I would mix in six or seven nurnie types to increase the complexity of the surface, but for this example, I just used one, a hatch and varied its size.   Zbrush has a fast way to do this–it’s called the Mesh Insert brush.

meshweave-hatch
A Nurnie By Meshweaver

The Mesh Insert brush allows you to pick another model and just stick it to the surface of the model.   The “Brush Mod” slider controls how deep the object will be placed on the surface.   (I often slide it up around +40 to +60 so that the nurnie generally riding right on the surface.

The main point of nurnies is to save time, so you may want model for yourself a few Lego-like pieces to stick onto your next project.   I have a library of few hundred in various resolutions I’ve kept handy for my projects.  🙂

If you really want to save yourself time, Meshweaver Productions make two very extensive collections. For £82.48 GBP (about $125 USD), you can have hundreds (about 550, each rendered in multiple resolutions) of detailed nurnies in your library which represent hundred of hours of saved work.  The hatch I used is from their second collection of  of parts, many based on tank pieces.  (I don’t take compensation on this blog–I bought these myself and really, really like this product.)

If you look back at part 5 of this series on Zbrush Mechanical, you’ll quickly be able to make fast alphas from your nurnies as well, expanding the possibilities for high quality detailing of your mechanical projects.

If you’re serious about mechanical modeling and surfacing, you owe it yourself to learn about nurnies and start collect your own parts for nurnification.

Zbrush Mechanical Part 6, Twist & Turn

How about a thumb pin like this?  final-knob1

Pretty tough?   Not really!  Start with your basic cylinder with about 172 by 100 divisions:basic-cyl2

Now a little masking using Ctrl-drag:first-mask3

Invert  (ctrl-tap outside the model) and inflate (Deformation subpallet):inflate4

Now for some stripes.   On the masking subpallet, Mask All, and then set sel and skip to 3 and 8.   Hit Col for a nice striped mask:stripe-mask5

Let’s restrict to our inflated area plus a nice little edge:limit-stripes6

Inflate again:second-inflate7

Pretty good, but I like ’em all twisty on thumb grips.  Grab and invert a quick selection:third-mask8

And Twist a couple of times (Deformation subpallet):twist9

A quick mask and deflate on the body, add a texture, and it’s done:final-knob10

Time to model, about 3 minutes.

Zbrush Mechanical Part 5, Quick Alpha From Geometry

Zbrush makes it easy to quickly create an alpha from geometry, which in turn can be used to detail objects.   Let’s take the hex nut from the previous exercise.   By turning SMT on in the Geometry Subpallet art level 4 and subdividing a bit more I’ve rounded the edges to give me a nice bevel.   I just position it so I’m looking straight down on it, (use shift-drag outside the object to snap the view to the nearest orthogonal position.)  To make an Alpha from this shape, it’s just as easy as going to alpha pallet and clicking “GrabDoc”.   A new alpha is available on your alpha pallet, starting “ZGRAB” like magic!original-nut

You’re not quite done yet–ZB prefers square alphas to avoid distortion and because I was lazy, the canvas was actually 800 x 600.   It’s a quick fix in an image editor, so export the alpha from the image pallet, fire up photoshop and crop to 512×512.photoshopcrop

Name the file it something suitable, reload it into ZB, and now you sculpt with it using any brush you like (I prefer the Clay or Layer brushes for example.)

hexhead

Turn on symmetry and with one stroke, I have detailing on a plate.sculpted-alpha

Zbrush Mechanical Part 4, Rounded Holes

I needed a hexagonal part with a round hole in the middle.   This would seem to be a challenge for ZBrush requiring an outside modeler.   However, it is actually pretty easy in ZB if you know primitives and deformers.

First, we can start with our old friend the cylinder primitive:cyl1

Not very hexagonal yet, and too long, but we can fix that.  We tweak the number of sides to 6 and shorten the z-length in the “initialize” menu:hex2

Better, but no hole . . . We can solve that by setting the “inner radius”:hexhole3

Nuts, close, but the inside whole isn’t round.   I’ll need to fix that up before the boss sees it.   I go ahead and make this a poly mesh and then group the inside polygons.  I also divide the polymesh a few times (well, 3 actually) with the “SMT” option off (so that it doesn’t round off my hexagonal prism).  Showing just the inside polygons (with display-double on for ease of viewing, I have:

holegroup4

Now if there was a easy way to round those off, I’d be home free.   Hey, what about that “deformations” subpallet?defmenu

Ooo . . . I like that “RFlatten” thing . . . (It’s short for Radial Flatten).   A little RFlatten and slight tweak of the size (with just X & Y turned on) and I have a nice round hole.  roundedhole5

Unhiding my geometry, I’m good to go:finishedhex

Total time to  model: less than two minutes.

Zbrush Mechanical Part 3, Springing Into Action

Springs are fun and a handy way to add a common mechanical detail.   Zbrush has a built-in spring generator, called the helix primitive.   A little setting of the initialize parameters and we get something like this:

Basic Spring
Basic Spring

(You did know about the initialize subpallet didn’t you?   If not, load up a few 3D primitives in Zbrush and look down the tools menu for the subpallet with “Initialize”.   Here you can set all sorts of neat starting shapes for your primitives before making them into a polymesh.)

I didn’t make this a polymesh right away, keeping it as a helix primitive.   I’m going to use a little know feature of primitives–col masking.   Also, to give me some more resolution, I divided my spring a couple times by going to the geometry subpallet.   (Yes, you can divide primitives the same as polymeshes!)

Inside the masking subpallet are some handy features that only work with primitives marked “col”, “row”, and “grid” with a couple mysterious slides marked “sel” and “skip”.   You push any of these buttons on an unmasked primitive, nothing seems to happen and thus many a tyro is frustrated by them.   This is because these buttons selective remove masks, not add them.   (It feels counterintuitive to me too, but this is ZB, after all–which often feels like it was built on “opposite day” at first.)

The sel slider will choose how many adjacent rows or columns of the primitives polygon grid will be selected.   The skip slider will  then decide how many to skip before selecting.   To get a nice box cutout, I’m going to select 3 and skip 4 which will give me a nice alternation.   Now, before I go rushing to pushing the “col” button, I do the all important first step–I hit the “mask all” button on the masking subpallet.  A press of the magic col button and I have a nice ring mask on my spring:

Masked Spring
Masked Spring

With my plain-jane spring now nicely masked, I can use “inflate” under the deformations subpallet to pull in the unmasked parts to give some additional texture.   A little fiddling, and I have something like this:

picture-6
Textured Spring

Add a couple of creative cylinders, and I have this:



Completed Spring
Completed Spring
